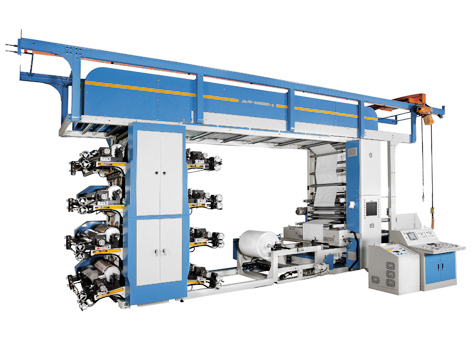

BNW-A Series - Woven Bag type 8 COLORS FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)JH/FF-8060BNW-A
FEATURES
- FC-25 cast iron machine frame, vibration-free, at high speed operation.
- Driven by timing belt, quiet and precise.
- To use differential gear device (made in Japan) to adjust the registration with forward and backward adjustment by the electronic type push-button device.
- Main motor by using AC motor (SIEMENS brand) with inverter control (YASKAWA brand) and line speed controlled by harmony synchronous driving system.
- Automatic tension control (MITSUBISHI brand) + magnetic brake on unwind and rewind.
- Non-stop semi-auto web-changing device.
- Electric control by using PLC (MITSUBISHI brand) with full color touch-screen type human machine interface (HMI).
SPECIFICATION
8 COLORS OFF-LINE SERIES
| Model | Printing Width | Film Width | Repeat Length | Printing Speed | M/C Dimension L x W x H |
| JH/FF-8060BNW-A | 600 mm | 620 mm | 13” - 48” | 20~120 M / min | 11860 x 2475 x 5150 mm |
| JH/FF-8080BNW-A | 800 mm | 820 mm | 13” - 48” | 20~120 M / min | 11860 x 2675 x 5150 mm |
| JH/FF-80100BNW-A | 1000 mm | 1020 mm | 13” - 48” | 20~120 M / min | 11860 x 2875 x 5150 mm |
| JH/FF-80125BNW-A | 1250 mm | 1270 mm | 13” - 48” | 20~120 M / min | 11860 x 3125 x 5150 mm |
| JH/FF-80150BNW-A | 1500 mm | 1520 mm | 13” - 48” | 20~120 M / min | 11860 x 3375 x 5150 mm |
