微型打孔機
產品規格

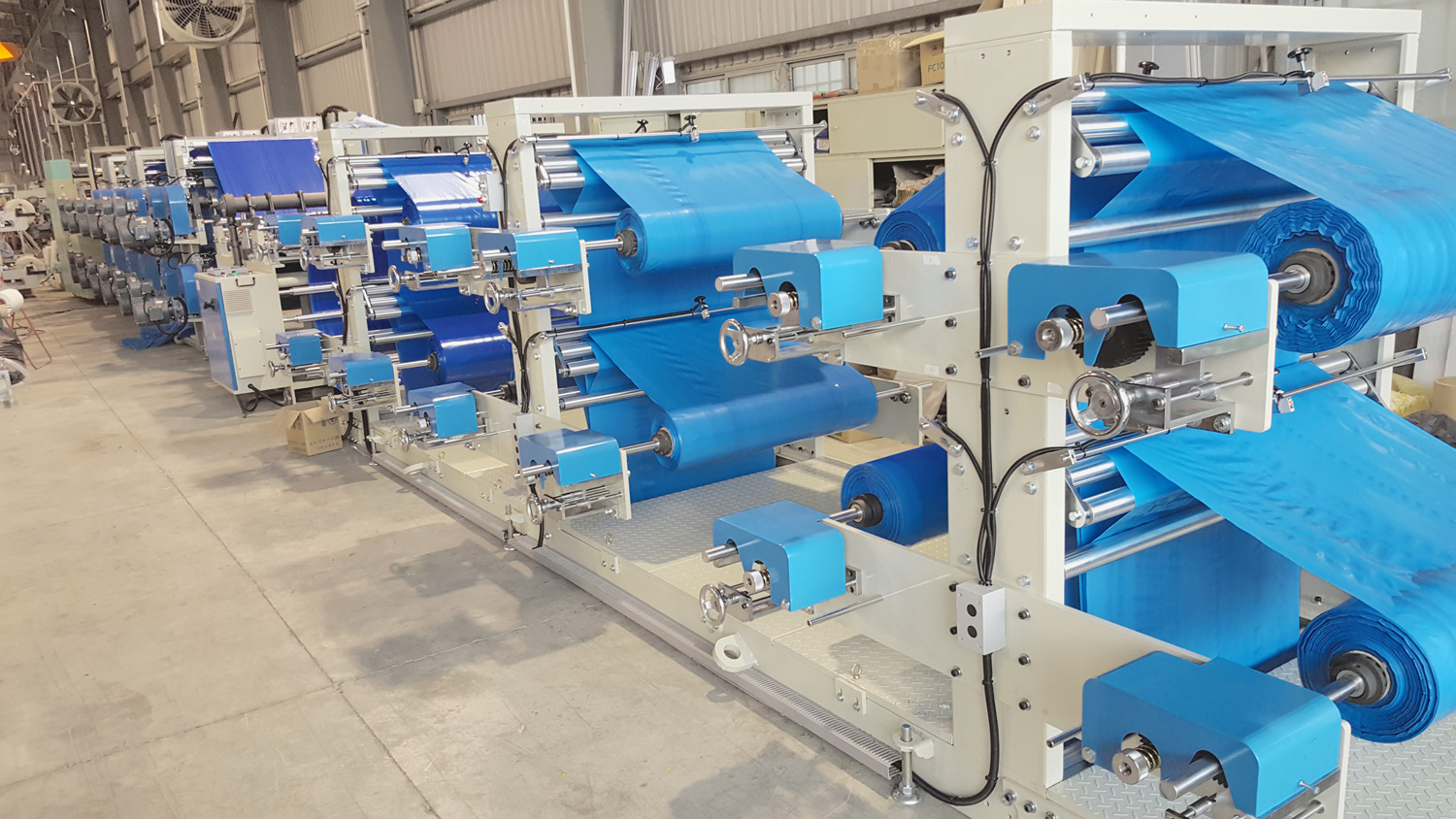

| Banana Clump Bag Punching and Rewinding Machine | |||||
| Machine Performance | (1) Feeding material width | Max 1,015mm | |||
| (2) Punching width | Max 914mm | ||||
| (3) Speed | Max 200 cycle/min | ||||
| (4) Main Features |
a. Machine feed 12 rolls of PE blown film at one time. b. Precise punching mold is driven by the AC motor. Punched waste fall down to the collector |
||||
| Component Specifications | (1) Size control | 2.0KW servo motor control | |||
| (2) Unwinding device | Flat conveyor with manual brake device*12sets | ||||
| (3) Mechanical punching device |
|
||||
| a. Main motor | 5 HP 6P AC Motor with inverter speed control | ||||
| b. Precise punching mold |
|
||||
| b-1. Punch holes capacity | 2rows/time | ||||
| b-2. Punch interval | 10mm | ||||
應用領域
