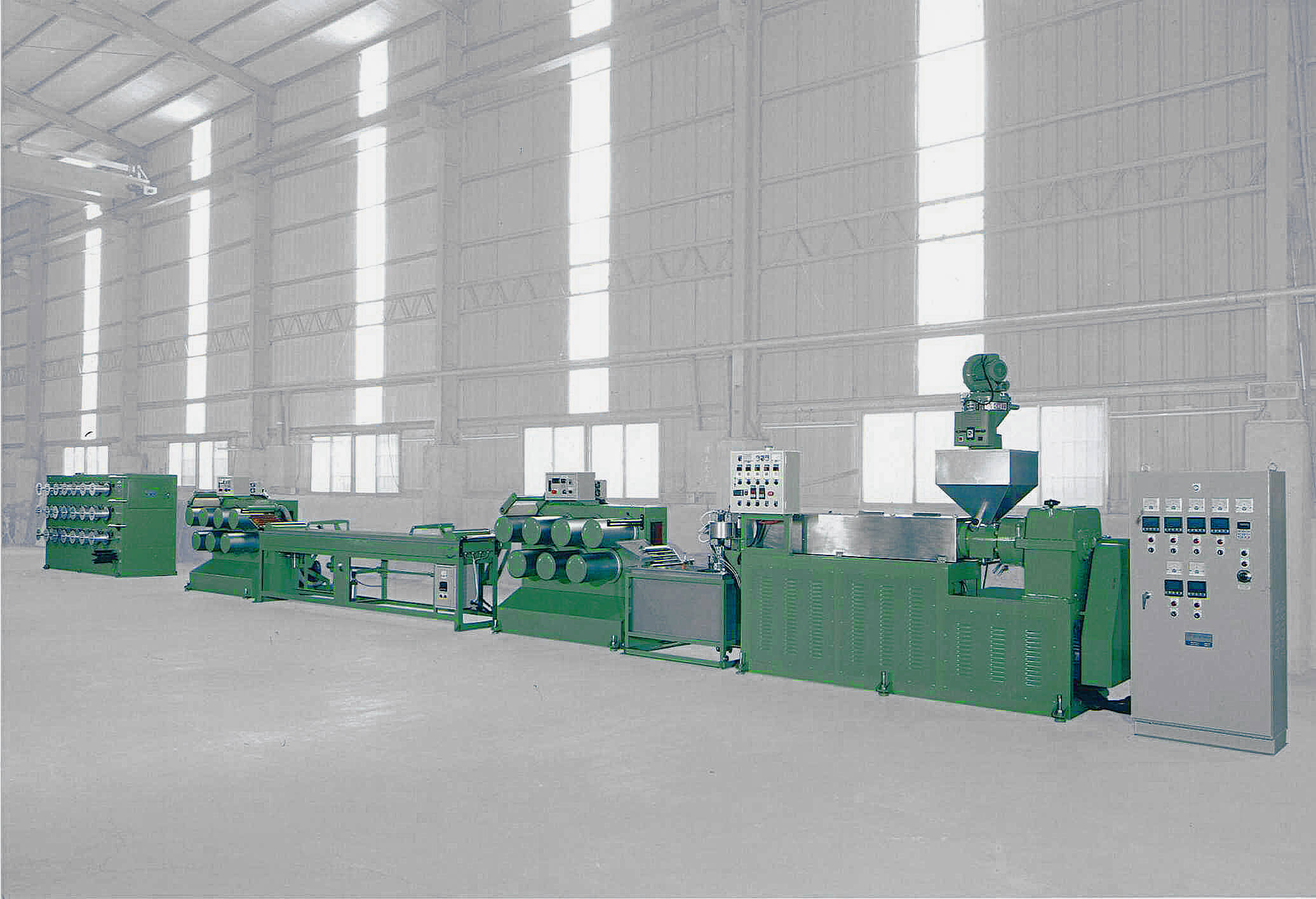

PP/PE Monofilament Making Machine
產品規格
|
Model
|
88m/m PP/PE Monofilament Making Machine
|
|
Production capacity
|
About 80 kg/hr
|
|
A.Feature
|
|
Material to be used
|
PE & PP
|
|
Dia.of filament
|
∅ 0.1~0.5 m/m
|
|
B.Exturder
|
|
Screw dia.
|
∅ 80 m/m
|
|
Screw L/D
|
28:01:00
|
|
Drving motor
|
40HPx6P A.C.motor with inverter control
|
|
C.Die
|
Nozzle x 2pcs 〔∅1mm x 240 (5Ply x 48)Holes〕
|
|
D.Control Panel
|
Independent type switch board(box)
|
|
Auto.thermo control
|
7 points digital display
|
|
E.Manual Type Screen Changer
|
|
F.Cooling Device
|
Water cooling tank
|
|
G.Take-Off Unit＂A＂
|
|
Driving motor
|
7.5 HP x 4P with gear reducer
|
|
Take-off speed
|
10~25 M/min
|
|
H.Stretching Device
|
Hot water & keep warm type
|
|
Heating capacity
|
22KW
|
|
I.Take-Off Unit＂B＂
|
|
Driving motor
|
10HP x 6P with inverter
|
|
Take-off speed
|
50~140 M/min
|
|
J.Emergency Stop Device
|
1 set
|
|
K.Winding Machine
|
|
Type
|
Flange type
|
